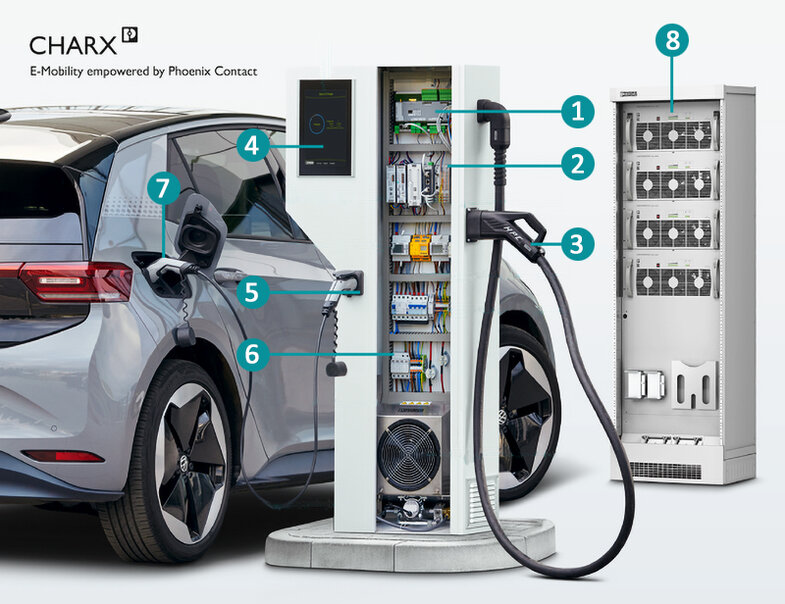

2. AC Charge Controls

AC Charge Controls

Networked charging stations through the mode 3 charging controllers "CHARX control modular". The devices offer extensive functions and interfaces in a compact design. They have an open Linux platform and are prepared for IoT applications, smart services and sector coupling. The portfolio covers all charging applications and receives continuous software updates.

zur Produktübersicht - klassische Steuerung

PHOENIX CONTACT Website

Product overview - modular control

Product overview - classic control

How do I optimally control the charging process?

3. DC Charging Cables

DC Charging Cable

Lower power range - CCS C-Line: For the private to semi-public sector, such as carports, company parking lots, restaurants, retail and public parking garages, the CSS Type 1 and CSS Type 2 charging standards are used. The charging power (nominal operation) here is 40 kW...80 kW. The charging cables do not have a replaceable mating face and are not cooled.
Medium power range: For semi-public to public areas, such as company parking lots, restaurants, retail stores, public parking garages and gas stations, the CSS Type 1, CSS Type 2 and GB/T charging standards are used. The charging power (nominal mode) here is 80 kW...250 kW. In boost mode, it can be increased to 500 kW. The charging cables have a replaceable mating face and are not cooled.
Upper Power Range - High Power Charging (HPC): For the public sector, such as HPC fast charging parks, gas stations and rest areas on highways and freeways, one uses the CSS Type 1 and CSS Type 2 charging standards. The charging power (nominal operation) here is 400 kW...500 kW. The charging cables have a replaceable plug-in face and are cooled by a liquid.
Direct current

Link to product landing page

HPC Charging Cable

Max. Charging power from 40 to 500 kW
HPC CSS Type 1
HPC CSS Type 2 
High Power Charging = approx. 100km in up to 5 minutes
Cooling by environmentally friendly water-glycol mixture
Temperature monitoring

Link to product landing page

HPC Charging Cablel, uncooled

Charging standard: CCS Type 2
DC rated current: 375 A
DC rated voltage: 1000 V
Conductor cross-section: 4 x 55 mm²
Temperature sensor technology: 2 x PT1000
Four-wire measurement
Protection class outside: IP54 (plugged)
Protection class inside: close to IP67
Cable length: 4 m ... 10 m

Product Overview

Links

4. Charging and Load Management

High-Power Charging

Type code & Certificate

You have questions?
Here you will find your contact persons

PHOENIX Contact offers management tools for optimizing charging infrastructure operations under the "Charx manage" series. The whole thing is intended to be an interface between electric car drivers, charging park operators, facility management and backend service providers.

Advantages:

Avoids expensive outages
Ensures the availability of the charging park
Easy commissioning
Setup and management via web browser
Touch operation
Future-proof and flexible
Flexible connection

Phoenix Contact's charging management meets the increasing demand for charging options. Due to the increasing number of electric vehicles that need to be charged, the infrastructure must also grow in parallel. Larger parking areas such as parking garages or parking lots are therefore increasingly equipped with charging columns.

This constant expansion of the infrastructure poses a major challenge to the planners of such charging parks. It is important to be able to charge as many vehicles as possible simultaneously with the given connection. The scalable software solution from Phoenix Contact is used for this purpose.

Links

To the products

5. AC Charging sockets/cables

Do you have questions?
Here you can find your contact persons

Software basic licenses

You receive staggered basic licenses to match the size of your loading park.

Specification	for 5 charging points	for 10 charging points	for 20 charging points	for 30 charging points	for 50 charging points
TYPE	EV-CC-S-SUITE-CP5	EV-CC-S-SUITE-CP10	EV-CC-S-SUITE-CP20	EV-CC-S-SUITE-CP30	EV-CC-S-SUITE-CP50
Art.-Nr.	1153509	1086929	1153508	1086921	1086920

Software Upgrade Licences

For later extensions you will receive favorable upgrade licenses.

Specification	from 5 to 10 charging points	from 10 to 20 charging points	from 10 to 30 charging points	from 20 to 30 charging points	from 30 to 50 charging points
Type	EV-CC-S-SUITEUPG5-10	EV-CC-S-SUITEUPG10-20	EV-CC-S-SUITEUPG10-30	EV-CC-S-SUITEUPG20-30	EV-CC-S-SUITEUPG30-50
Art.-Nr.	1153513	1153516	1086891	1153520	1086889

Compatible industrial PCs

Depending on the architecture of the loading park, you choose between two suitable industrial PCs with coordinated hardware performance. You can install the software on them in just a few minutes.

Specification	Panel-PC with multi touch display 12,1 inch	Box PC
Application	Loading parks with authorization and touch operation at the central terminal	Charging parks without authorization or with decentralized authorization at each charging point
Type	VL2 PPC12 1000	BL2 BPC 1000
Art.-Nr.	2403710	2404777
Recommended configuration key	D46/A20/I38/R26/M69/OS71/EF00/O00/S00	A21/I42/R26/M71/OS71/S00/EF00/EF00

Compatible Charging Controls

Depending on the type of charging and the required range of functions, we offer you compatible charging controllers. These are connected to the industrial PC via Ethernet.

Specification	CHARX control advanced	CHARX control advanced plus	CHARX control professional
Scope of functions	AC Charging, Energy data collection	AC Charging, Energy data collection, RFID Authentification, Residual current monitoring	DC Charging via CCS and CHAdeMO, AC Charging, Energy data collection, RFID Authentification
Type	EM-CP-PP-ETH	EV-CC-AC1-M3-CBCRCM-ETH	EV-PLCC-AC1-DC1
Art.-Nr.	2902802	1018701	16224130

AC charging sockets for charging stations and wallboxes

The infrastructure charging sockets for Mode 3 charging cables are mounted in AC charging columns and wallboxes. Mode 3 charging takes place via single-phase and three-phase charging cables. The charging process is indicated by colored LED displays. Among other features, these sockets are particularly characterized by silver-plated power and signal contacts, high-precision temperature monitoring and integrated interlocking. Production is in accordance with automotive standard IATF 16949 and ISO 9001.

Complete portfolio for type 2 and GB/T
LED indicators, colored
Accurate temperature measurement
Integrated interlock
Flexible mounting
Water- and dirt-tight according to IP54

Link to the products

Links

More informationen about AC charging cable from the manufacturer

Type code & certificate

Do you have questions?
Here you can find your contact persons

AC Charging Cable

Type 1* : This variant is used in the North American, South Korean and Japanese regions. The charging power is 5 kW...12 kW and the number of phases is 1-phase. This variant also offers a locking option with shackle lock. Certifications for this type are VDE, CB, UL and PSE.
Tpye 2* : This variant is used in the European, Australian, Indian, Arab and South African regions, among others. The charging power is 5 kW...26.6 kW and the number of phases is 1- or 3-phase. Certifications for this type are VDE and CB.
Type GB/T* :This variant is used in the Chinese regions. The charging power is 4.4 kW...24.4 kW and the number of phases is 1- or 3-phase. This variant also offers a locking option with shackle lock. Certification for this type is CQC.
AC power

*Data refer to the vehicle charging plugs

AC charging cable CHARX connect eco

Compared to the current Mode 3 charging cables, the new "CHARX connect eco" charging cable family impresses with its lower weight due to reduced material usage and more compact dimensions. At market launch, the charging cables are available in the Type 2 charging standard in four power classes from 3.7 to 22kW. Both the variant with open cable end for fixed connection and the mobile variant are available.

The new products comply with the IATF 16949 standard and are reliably protected against water ingress in accordance with IP67. On request, the charging plugs are available with customer logo.

Link to product overview

Links

Overview page

AC charging cable

DC charging cable

Infrastructure charging sockets

High-Power charging

Type key & certificate

Do you have questions?
Here you can find your contact person

6. Overvoltage protection

PHOENIX Contact offers under the series "Charx protect" technology to protect the charging station and electric vehicles from lightning and overvoltages. Thus, climatic or technical disturbances cannot cause any damage.

Advantages:

Complete protection
Uninterrupted continuation of the charging process
Protection of the connected e-vehicle

"CHARX protect" protects the complex and sensitive technology on the electric vehicle and the charging infrastructure. In both areas, the aim is to ensure a long service life and an uninterrupted charging process.

The protective concept consists of 3 parts:

Type 1+2 combination arresters and type 2 arresters for the power supply protect the feed-in against dangerous overvoltages caused by lightning strikes and switching operations from the mains.
With type 3 surge arresters, you ensure permanent functioning of the numerous sensitive components within your charging station.
The communication components are usually connected via Ethernet and should also be protected.

Links

To the products

7. Vehicle charging sockets

You have questions?
Here you can find your contact person

Vehicle charging sockets

The universal vehicle charging sockets enable AC and DC charging of electric cars and e-commercial vehicles. The vehicle can be charged permanently with 250 kW, temporarily even up to 500 kW. The standards correspond to the charging cables CSS Type 1, CSS Type 2 and GB/T and of course all AC variants.

IP67, front side additionally IP6K6K and IP6K9K
With temperature measurement and thus overheating protection
HPC charging due to power cross section up to 95mm².

Video Charging Sockets

Links

Do you have questions?
Here you can find your contact person

Product overview vehicle charging sockets CCS and GB/T DC

Specification	CCS Type 1	CCS Type 2	GB/T DC
Region	North America, South Korea	Europe,Australia,Greenland,India,Saudi Arabia,South Africa,South America,other	China
DC cable cross section	35 mm²,70 mm² or 95 mm²	35 mm²,70 mm² or 95 mm²	35 mm² or 70 mm²
Temporary maximum DC charging power at 1000 V	250 kW or 500 kW	250 kW or 500 kW	-
Permanent maximum DC charging power at 1000 V	125 kW, 200 kW or 250 kW	125 kW, 200 kW or 250 kW	125 kW or 250 kW
AC cable cross section	6 mm² oder 16 mm²	6 mm²	-
Permanent maximum AC charging power	12 kW (1-phase) or 20 kW (1-phase)	8 kW (1-phase) or 26,6 kW (3-phases)	-
Supply voltage Interlock actuator	12 V	12 V or 24 V	-
Cable length (more upon request)	2 m	2 m	2 m

CCS Type 1

CCS Type 2

GB/T DC

Product overview vehicle charging sockets AC

Specification	Type 1 AC	Type 2 AC	GB/T AC
Region	North America, Japan, South Korea	Europe, Australia, Greenland, India, Saudi Arabia, South Africa, South America, other	China
AC cable cross-section	6 mm² or 16 mm²	6 mm²	6 mm²
Permanent maximum AC charging power	12 kW (1-phase) or 20 kW (1-phase)	8 kW (1-phase) or 26,6 kW (3-phases)	8 kW (1-phase) or 26,6 kW (3-phases)
Voltage locking actuator	12 V	12 V or 24 V	12 V
Cable lenght (more upon request)	2 m	2 m	2 m

CCS Type 1

CCS Type 2

GB/T DC

8. DC Power Electronics

The economic operation of your DC charging infrastructure for fast charging is enabled by the highly efficient CHARX power electronics. Whether charging modules in the charging pole or entire system cabinets for charging parks in the megawatt range, the CHARX power system offers solutions for DC charging with high voltages and currents up to High Power Charging (HPC).

Advantages:

Quick installation
Simple connection technology
Efficient, economical operation
Scalable charging power
Compliance with European safety and EMC standards
Flexible design of charging systems

30 kW power modules are available as AC/DC and DC/DC converters. One can install them directly into the charging pole, which then provides a stable power supply for charging the electric vehicles. The module complies with 19" standard dimension, as well as push-lock and T-LOX quick connection technology.

For larger systems such as charging parks, the 87.5 kW power module is used. This is installed in the system cabinet via rack mounting. In total, the cabinet can be brought up to a charging power of 350 kW.

Phoenix Contact has developed the modular CHARX system for fast and economical installation of fast charging infrastructures in a standardized 19-inch format. It consists of several modules for distribution, conversion and control of the charging current, which can be combined as required. The system includes a distribution module to supply AC mains power to all components, up to five power modules to convert to DC power, and a control module to monitor the charging process. The modular design reduces the complexity of the DC charging station and accelerates and optimizes the charging station manufacturer's processes.

Product overview

Links

To the products
