Conec

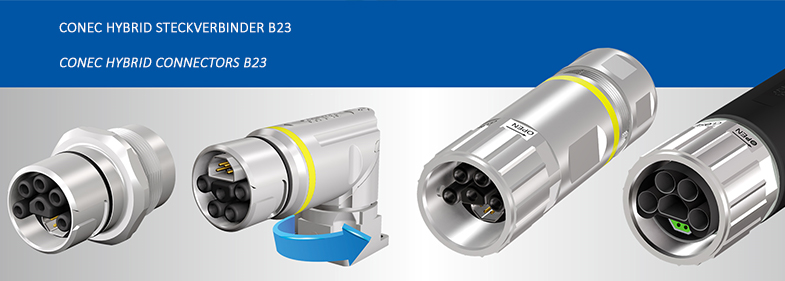

Experience the advanced Conec Hybrid series, which enables a space-saving and secure connection of data transmission and power supply in one connector. With its bayonet quick release, this series not only offers a compact solution, but also increased safety.
Thanks to the quick-release bayonet lock, the plug connection is only locked when fully mated, which ensures secure contacting and minimizes the risk of failure. The B23 hybrid flange, a technologically innovative alternative to the conventional screw locking of the M23 connector, enables the simple and safe connection of servo drives with a practical one-cable solution.

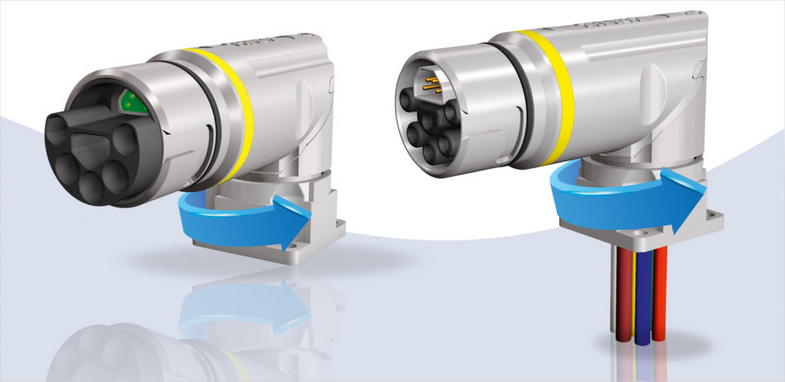

The angled flange connectors of the Conec Hybrid series can be optimally adapted to the desired installation situation thanks to their rotatable housing design. With a robust housing made of nickel-plated die-cast zinc and a high degree of protection IP67, they are also suitable for applications with harsh environmental influences.

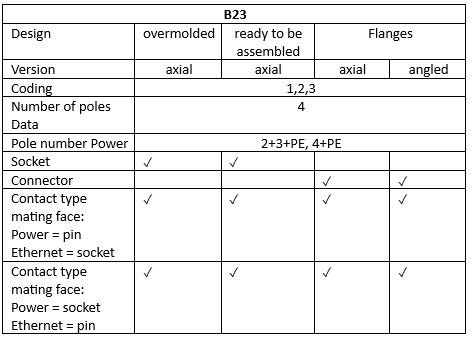

| Construction size | B23 | B23 | B23 | B23 |
| Construction type | overmolded | customizable | Flanges | Flanges |
| Version | axial | axial | axial | angled |
| Encoding | 1, 2, 3 | 1, 2, 3 | 1, 2, 3 | 1, 2, 3 |
| Number of poles Data | 0, 2, 4 | 0, 2, 4 | 0, 2, 4 | 0, 2, 4 |
| Number of poles Power | 4+PE, 3+PE+2, 6+PE | 4+PE, 3+PE+2, 6+PE | 4+PE, 3+PE+2, 6+PE | 4+PE, 3+PE+2, 6+PE |
| Current carrying capacity data contacts | 4 A @ 40°C (4 qmm), 1,5 A @ 40°C (B-Seite RJ45) | 4 A @ 40°C (4 qmm), 1,5 A @ 40°C (B-Seite RJ45) | 4 A @ 40°C (4 qmm), 1,5 A @ 40°C (B-Seite RJ45) | 4 A @ 40°C (4 qmm), 1,5 A @ 40°C (B-Seite RJ45) |
| Current-carrying capacity power contacts | 26 A @ 40°C (4 qmm), 16-20 A @ 40°C (2,5 qmm) | 26 A @ 40°C (4 qmm), 16-20 A @ 40°C (2,5 qmm) | 26 A @ 40°C (4 qmm), 16-20 A @ 40°C (2,5 qmm) | 26 A @ 40°C (4 qmm), 16-20 A @ 40°C (2,5 qmm) |
| Rated voltage data contacts | 50 V AC/DC | 50 V AC/DC | 50 V AC/DC | 50 V AC/DC |
| Rated voltage power contacts | 600 V AC/DC (2,5 qmm / 4 qmm) | 600 V AC/DC (2,5 qmm / 4 qmm) | 600 V AC/DC (2,5 qmm / 4 qmm) | 600 V AC/DC (2,5 qmm / 4 qmm) |
