• Lower power range - CCS C-Line: For the private to semi-public sector, such as carports, company parking lots, restaurants, retail and public parking garages, the CSS Type 1 and CSS Type 2 charging standards are used. The charging power (nominal operation) here is 40 kW...80 kW. The charging cables do not have a replaceable mating face and are not cooled.

• Medium power range: For semi-public to public areas, such as company parking lots, restaurants, retail stores, public parking garages and gas stations, the CSS Type 1, CSS Type 2 and GB/T charging standards are used. The charging power (nominal mode) here is 80 kW...250 kW. In boost mode, it can be increased to 500 kW. The charging cables have a replaceable mating face and are not cooled.

• Upper Power Range - High Power Charging (HPC): For the public sector, such as HPC fast charging parks, gas stations and rest areas on highways and freeways, one uses the CSS Type 1 and CSS Type 2 charging standards. The charging power (nominal operation) here is 400 kW...500 kW. The charging cables have a replaceable plug-in face and are cooled by a liquid.
  Direct current



Link to product landing page

• Max. Charging power from 40 to 500 kW
• HPC CSS Type 1
• HPC CSS Type 2 
• High Power Charging = approx. 100km in up to 5 minutes
• Cooling by environmentally friendly water-glycol mixture
• Temperature monitoring

Link to product landing page

• Charging standard: CCS Type 2
• DC rated current: 375 A
• DC rated voltage: 1000 V
• Conductor cross-section: 4 x 55 mm²
• Temperature sensor technology: 2 x PT1000
• Four-wire measurement
• Protection class outside: IP54 (plugged)
• Protection class inside: close to IP67
• Cable length: 4 m ... 10 m

Product Overview

Overview

High-Power Charging

PHOENIX Contact offers management tools for optimizing charging infrastructure operations under the "Charx manage" series. The whole thing is intended to be an interface between electric car drivers, charging park operators, facility management and backend service providers.

Advantages:

• Avoids expensive outages
• Ensures the availability of the charging park
• Easy commissioning
• Setup and management via web browser
• Touch operation
• Future-proof and flexible
• Flexible connection

Phoenix Contact's charging management meets the increasing demand for charging options. Due to the increasing number of electric vehicles that need to be charged, the infrastructure must also grow in parallel. Larger parking areas such as parking garages or parking lots are therefore increasingly equipped with charging columns.

This constant expansion of the infrastructure poses a major challenge to the planners of such charging parks. It is important to be able to charge as many vehicles as possible simultaneously with the given connection. The scalable software solution from Phoenix Contact is used for this purpose.

Overview

To the products

Brochure Charging Technology

The modular AC charging sockets CHARX connect modular from Phoenix Contacts are designed for use in charging stations and wallboxes. They enable AC charging of electric vehicles via mobile AC charging cables with an output of up to 22 kW.

With the clever modular system, you can freely combine the components of your wallbox or charging station and thus decide on the design, functionality and charging power. The charging socket and the protective cover are available in various common combinations, but also individually in other variants.
The AC charging sockets are designed for one-handed operation so that you can easily open the protective cover with the charging plug without needing a second hand. This small feature makes the charging process easier and is appreciated by many of our customers.

In addition, the charging sockets have an LED status indicator integrated into the protective cover. This display allows users to see the availability and status of the charging station at a glance. The LEDs can be freely controlled via pulse width modulation, allowing you to configure an individual color for each status of your charging point that matches your corporate design.

Product overview AC infrastructure charging sockets

Further information on technical details and designs can be found in the PHOENIX Catalogue from page 78.

Overview

Brochure Charging Technology

• Type 1* :  This variant is used in the North American, South Korean and Japanese regions. The charging power is 5 kW...12 kW and the number of phases is 1-phase. This variant also offers a locking option with shackle lock. Certifications for this type are VDE, CB, UL and PSE.
• Tpye 2* : This variant is used in the European, Australian, Indian, Arab and South African regions, among others. The charging power is 5 kW...26.6 kW and the number of phases is 1- or 3-phase. Certifications for this type are VDE and CB.
• Type GB/T*  :This variant is used in the Chinese regions. The charging power is 4.4 kW...24.4 kW and the number of phases is 1- or 3-phase. This variant also offers a locking option with shackle lock. Certification for this type is CQC.
• AC power

*Data refer to the vehicle charging plugs

More informationen about AC charging cable from the manufacturer

Compared to the current Mode 3 charging cables, the new "CHARX connect eco" charging cable family impresses with its lower weight due to reduced material usage and more compact dimensions. At market launch, the charging cables are available in the Type 2 charging standard in four power classes from 3.7 to 22kW. Both the variant with open cable end for fixed connection and the mobile variant are available.

The new products comply with the IATF 16949 standard and are reliably protected against water ingress in accordance with IP67. On request, the charging plugs are available with customer logo.

Link to product overview

Overview page

AC charging cable

DC charging cable

Infrastructure charging sockets

High-Power charging

PHOENIX Contact offers under the series "Charx protect" technology to protect the charging station and electric vehicles from lightning and overvoltages. Thus, climatic or technical disturbances cannot cause any damage.

Advantages:

• Complete protection
• Uninterrupted continuation of the charging process
• Protection of the connected e-vehicle

"CHARX protect" protects the complex and sensitive technology on the electric vehicle and the charging infrastructure. In both areas, the aim is to ensure a long service life and an uninterrupted charging process.

Overview

To the products

Brochure Charging Technology

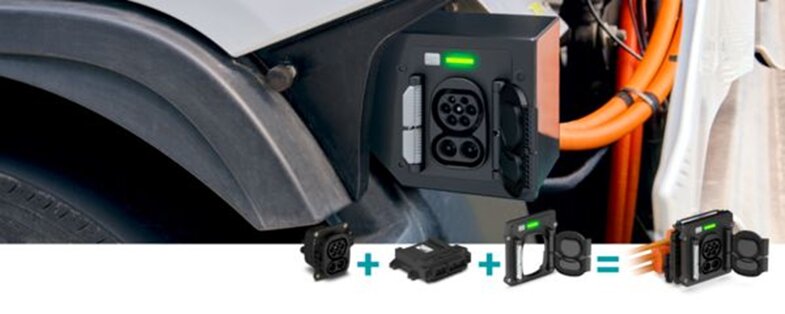

The CHARX connect universal vehicle charging sockets offer a versatile charging solution for electric vehicles, commercial vehicles and mobile machinery. They enable charging with both alternating current and direct current, from low charging power to high power charging. In addition to CCS charging sockets, GB/T variants are also available for the Chinese market.
Developed in accordance with the requirements of the automotive industry according to IATF 16949, these charging sockets offer robust and proven technology for all types of electric vehicles. They are waterproof, dirt and dust resistant according to high IP protection standards.

The vehicle charging sockets have been successfully tested according to ISO 20653 and offer comprehensive protection against water immersion to a depth of up to one meter, splash water, dust ingress and contact. Both the inside and outside of the charging sockets offer this protection, even when the charging flap is open and the charging plug is not plugged in.
The degree of protection of the front area has been tested in various situations. When the vehicle charging socket is open, it offers protection against strong jets of water under increased pressure and when the protective caps are plugged in, it corresponds to the same degree of protection as when it is open. When the charging plug is plugged in, the charging socket offers protection against splashing water on all sides and solid foreign bodies with a diameter ≥1.0 mm in accordance with IP44.

Product overview

Further information on technical details and designs can be found in the PHOENIX Catalogue from page 36.

Overview

The economic operation of your DC charging infrastructure for fast charging is enabled by the highly efficient CHARX power electronics. Whether charging modules in the charging pole or entire system cabinets for charging parks in the megawatt range, the CHARX power system offers solutions for DC charging with high voltages and currents up to High Power Charging (HPC).

Advantages:

• Quick installation
• Simple connection technology
• Efficient, economical operation
• Scalable charging power
• Compliance with European safety and EMC standards
• Flexible design of charging systems

Overview

To the products

Brochure Charging Technology
