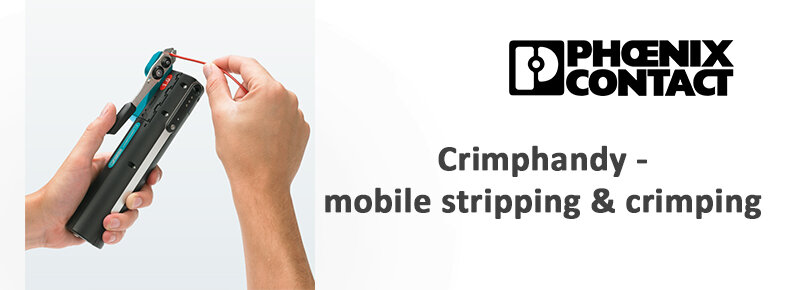

Phoenix Contact Crimphandy - mobile stripping & crimping

News

With the introduction of its mobile stripping and crimping machine, the Crimphandy, Phoenix Contact has created a real highlight. It is the smallest and lightest device of its kind and thus represents a solution that the industry had already been waiting for. The device enables automatic stripping and crimping in the smallest space directly on place.

DIN 46228-4 is the standard for wire end sleeves

For a high-quality crimp, correct forming and correct hardness of the sleeve is essential. For this reason, DIN 46228-4 was amended in March 2020 and a maximum hardness of 105 HV (Vickers hardness) was added to the standard. Phoenix sleeves had already met this criterion before the change.

Why not crimp by hand?


A standard manual crimping process takes on average eight seconds. The Crimphandy from Phoenix Contact can do this in just two seconds and always with the same, best quality crimps. The time saved by the device is enormous and avoiding errors is made easy by the automatic self-monitoring of the device.

Further advantages of this crimping tool


The Crimphandy is equipped with a powerful lithium-ion polymer battery that can be changed quickly. Up to 2000 crimping cycles are possible with one battery charge. The integrated magazine has space for 50 wire end sleeves in strip form, allowing work to be carried out without constant interruption. The cable remains resulting from stripping are collected in an extra container so that the switch cabinet or working environment remains clear.
The tool is suitable for one cross-section each and is available for the sizes 0.5, 0.75, 1.0 and 1.5 mm².

Technical data:

  • Working cycle                                < 2 s
  • Conductor insertion length            min. 32 mm
  • Crimping                                       square crimp
  • weight                                           0,43 kg
  • Dimensions W x H x L                 43 x 70x 205 mm

If you have further questions about Crimphansy from the manufacturer Phoenix Contact, please do not hesitate to contact one of our sales representatives. We will be glad to assist you with a personal offer.

Mobile stripping and crimping machine from Phoenix Contact
