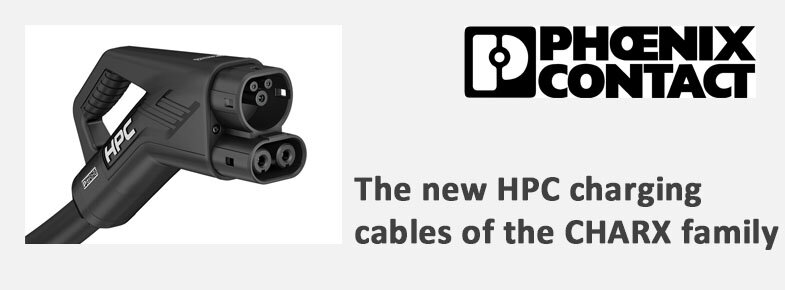

The new HPC charging cables of the CHARX family

PHOENIX CONTACT Deutschland GmbH

In the field of electromobility, Phoenix Contact offers comprehensive solutions for charging electric vehicles. The product portfolio includes charging plugs, charging cables, charging stations and the associated accessories. The products are characterized by high quality, reliability, and safety and meet the common international standards.

The new CHARX connect professional family from Phoenix Contact revolutionizes high power charging (HPC) with sustained 375 kW without the need for cooling. The CCS charging cables feature an increased conductor cross-section of 4 x 50 mm² and enable the safe operation of HPC charging stations at temperatures of up to 40 °C with 375 A. Even for short periods, significantly higher charging currents are possible in boost mode, resulting in particularly short charging times and making the charging of electric vehicles at e-charging stations suitable for everyday use.

The uncooled charging cables not only offer impressive performance, but also intelligent functions and maximum safety. They are prepared for four-wire measurement technology to enable charging processes to be accounted for securely and in compliance with calibration regulations. By measuring the power dissipation in the charging cable, the transmitted energy can be accurately recorded.

The safety of the CCS charging plug is further improved by an innovative two-chamber sealing system. The spatial separation of the two power contacts DC+ and DC- reliably prevents short circuits from occurring. In addition, separately available repair kits enable fast and cost-effective maintenance, during which the mating face including the power contacts can be replaced without having to replace the entire charging cable.



Advantages at a glance:

  • Without liquid cooling
  • Preparation four-wire measuring technology
  • High safety due to two-chamber sealing system
  • Robust design
  • Fast and inexpensive maintenance



For further questions on the topic of High Power Charging (HPC) or generally on the topic of E-mobility from Phoenix Contact, your contact persons from the inside sales department will be happy to assist you and prepare your personal offer.
