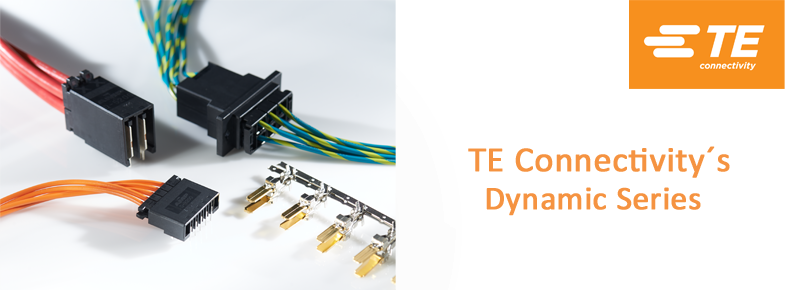

The Dynamic series from TE Connectivity has been specially developed for use in applications where high contact density and reliable transmission of signals and power are important.
Large product family
The wide product range of the Dynamic series allows use in nearly all areas. The cable-to-PCB, cable-to-panel or cable-to-cable connectors are available in many different housing designs. The components are also available in standard crimp and spring clamp versions. Standardized contacts limit the use of required application tools.
Benefits at a glance:
- vibration and shock resistant
- wide range of applications
- audible click
- long service life with minimal downtime
- wide product family
Pitch (mm)
2.0
2.5
3.5
2.5
3.81
5.08
7.5
Series
D-1100
D-1200
D-1900
D-2100
D-3100
D-3200
D-3950
Termination
Crimp
Crimp
Spring Clamp
Crimp
Crimp
Crimp
Spring Clamp
Current (A/UL)
5
5
4
5
15
15
14.5
Voltage Rating (V/UL)
125
250
150
250
250
600
600
Wire-to-Board
X
X
X
X
X
X
X
Board-to-Board
X
X
-
X
X
X
-
Examples of typical applications:
- robotics
- data communication
- industrial control
- elevator/Escalator
- HMI (Human Machine Interface)
- etc.
