Under the "Charx connect" range, Phoenix Contact offers different charging cables for e-mobility. The charging process must be robust and resistant, but also easy to handle. High-quality AC and DC charging cables have been developed for this purpose. Among other things, these cables are particularly characterized by silver-plated power and signal contacts, high-precision temperature monitoring and integrated locking. Production is in accordance with automotive standard IATF 16949 and ISO 9001.


Which charging cable is the right one for my application?

Product families in comparison

Product family CHARX connect eco CHARX connect comfort
Design & Comfort
Rubberized grip area for comfortable handling no yes
Protective cap on the infrastructure charging plug no yes
Protective cap on the vehicle charging plug yes yes
Dimensions 70 x 82 x 202 mm 70 x 137 x 216 mm
Variance & individuality
Available charging standards Type 2 Type 1, Typ 2, GB/T
Charging plug with individual logo black (others on request) black, gray, yellow, red (others on request)
Minimum order quantity (depending on article) ca. 500 1-100
Quality & safety
Developed and produced according to IATF 16949 yes yes
VDE-certified cable in accordance with DIN EN 50620 yes yes
Silver-plated power and signal contacts yes yes
Longitudinal watertightness yes yes


Product overview AC-charging cables

Further information on technical details and designs can be found in the PHOENIX Catalogue from page 74 onwards.

NACS is coming - and PHOENIX CONTACT is part of it

Phoenix Contact is pleased to be part of the launch of the new North American Charging Standard (NACS). By the end of 2024, they will provide first-class NACS charging technology that offers customers the quality they are accustomed to. The AC charging cables for 50 A and 80 A as well as DC charging cables for 200 A will be available by then. Further DC charging cables for higher currents, including liquid-cooled variants, are planned for 2025. In parallel, Phoenix Contact is developing customized vehicle charging sockets for car manufacturers and, from 2026, universal vehicle charging sockets for commercial vehicles, mobile machinery and the transport sector in various performance classes.

The Megawatt Charging System (MCS)

The Megawatt Charging System (MCS) is a globally standardized fast charging system for heavy commercial vehicles with charging capacities of up to 3.75 MW. Since the establishment of the CharIN MCS task force in 2018, Phoenix Contact has been working on the definition of requirements and standards for the development of the MCS.

The aim is to bring MCS charging cables and MCS vehicle charging sockets to the market in the medium term in the usual high Phoenix Contact quality.

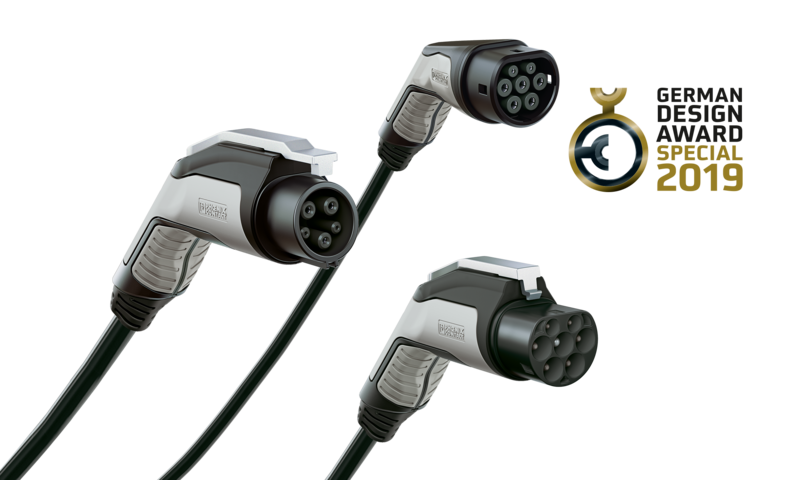

AC Charging Cable

  • Type 1* :  This variant is used in the North American, South Korean and Japanese regions. The charging power is 5 kW...12 kW and the number of phases is 1-phase. This variant also offers a locking option with shackle lock. Certifications for this type are VDE, CB, UL and PSE.
  • Tpye 2* : This variant is used in the European, Australian, Indian, Arab and South African regions, among others. The charging power is 5 kW...26.6 kW and the number of phases is 1- or 3-phase. Certifications for this type are VDE and CB.
  • Type GB/T*  :This variant is used in the Chinese regions. The charging power is 4.4 kW...24.4 kW and the number of phases is 1- or 3-phase. This variant also offers a locking option with shackle lock. Certification for this type is CQC.
  • AC power

*Data refer to the vehicle charging plugs

More informationen about AC charging cable from the manufacturer

AC charging cable CHARX connect eco

Compared to the current Mode 3 charging cables, the new "CHARX connect eco" charging cable family impresses with its lower weight due to reduced material usage and more compact dimensions. At market launch, the charging cables are available in the Type 2 charging standard in four power classes from 3.7 to 22kW. Both the variant with open cable end for fixed connection and the mobile variant are available.

The new products comply with the IATF 16949 standard and are reliably protected against water ingress in accordance with IP67. On request, the charging plugs are available with customer logo.

Link to product overview
